Lithium Ion Battery Pack
We are into green technology in order to achieve ecofriendly and long life energy
Storage system for different applications through design and manufacture of battery packs
based on Lithium Ion Chemistry. These packs are robust and customizable for individual
demand at affordable cost.
Open Architecture Construction
*Complete pack can be dis-assembled by a qualified technician
*Brings flexibility and hence reliability in the system

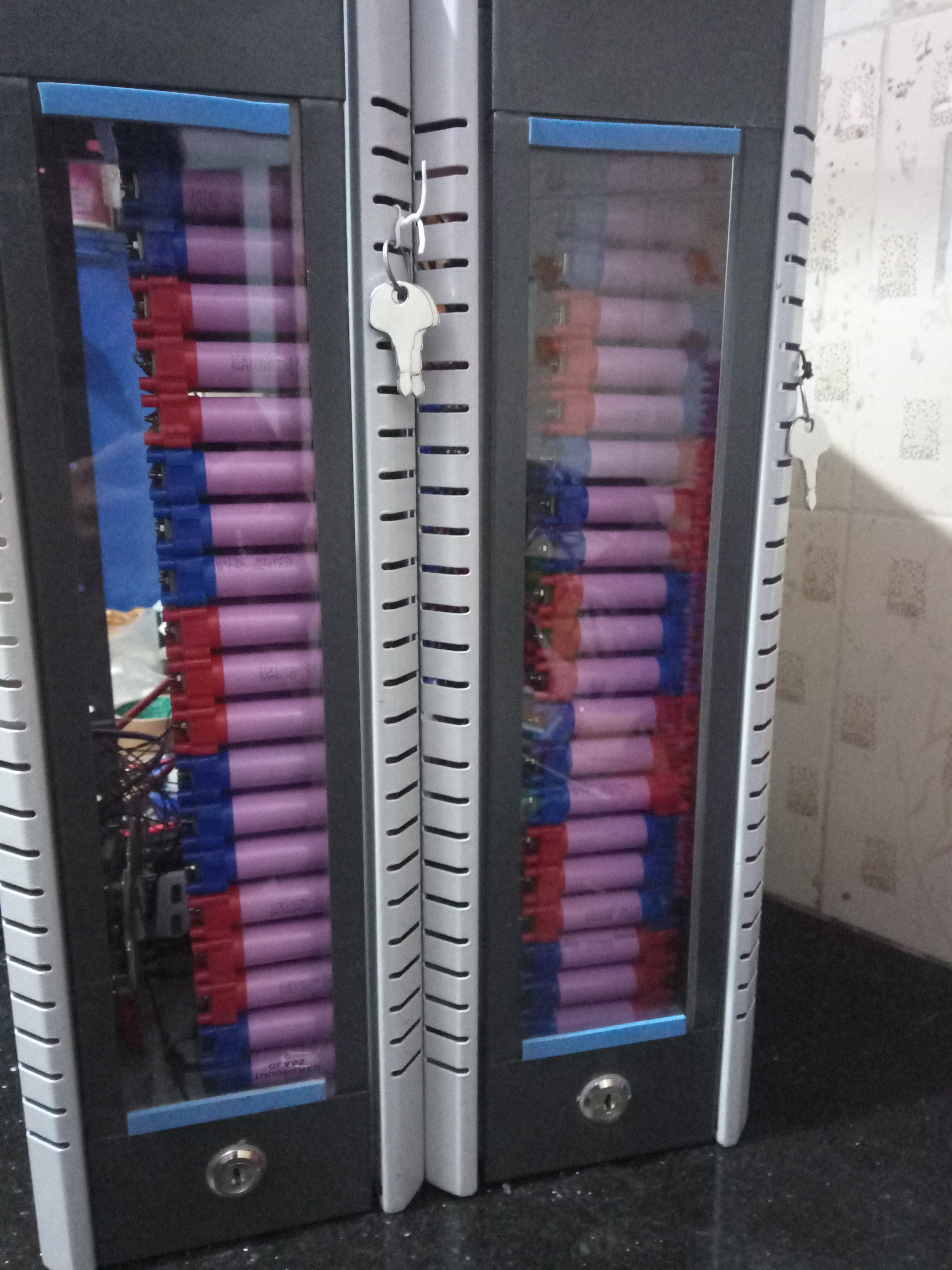

*Transparent window is purposely put to show original
“BIS Marked Genuine Cells” inside the pack
Safe by Construction
*Spacing between the cells help for air circulation and thermal management
*Fabricated instead of welded assembly— ensures simpler and reliable process
Control through application of uniform torque on each cell terminal
*Vibration Resistant—Plastic end caps on each cell act like
“Spring Washers” and resist vibration
Case Study of Co-Existence along with Lead Acid Battery :
*We have successfully commissioned 9.6 kWh at a Site with the combination of
Our programmable BMS and leveraging intelligence of “Flin Inverter”
*Site has existing Lead Acid Batteries - Both Lead Acid and our Lithium Ion Packs
Are living happily together.
Lithium ion battery packs for Energy Storage System:
|
Technical Specification |
1kWhr |
3kWhr |
4.7kWhr |
9.4kWhr
|
13.6kWhr |
|
Construction |
8p*14s |
24p*14s |
36p*14s |
72p*14s |
104p*14s |
|
Voltage (V) Nominal Max Min Recommended range |
50.8 57.4 39.2 42 to 54.6 |
50.8 57.4 39.2 42 to 54.6 |
50.8 57.4 39.2 42 to 54.6 |
50.8 57.4 39.2 42 to 54.6 |
50.8 57.4 39.2 42 to 54.6 |
|
Weight(kg) |
7 |
21 |
34 |
66 |
96 |
|
Charging Method: |
CC-CV |
CC-CV |
CC-CV |
CC-CV |
CC-CV |
|
Charging Time: |
3 hours |
3 hours |
3 hours |
3 hours |
5 hours |
|
Discharge rate (Max) |
0.7C, 14Amps |
0.7C, 43Amps |
0.7C, 65Amps |
0.7C, 130Amps |
0.7C, 200Amps |
|
Charge rate (Max) |
0.3C, 6Amps |
0.3C, 18Amps |
0.3C, 30Amps |
0.3C, 60Amps |
0.2C, 60Amps |
|
Estimated life |
2000cycles for 80% DOD for recommended range |
2000cycles for 80% DOD for recommended range |
2000cycles for 80% DOD for recommended range |
2000cycles for 80% DOD for recommended range |
2000cycles for 80% DOD for recommended range |
|
BMS and Tracking |
Protection Circuit Board |
Yes, Programmable |
Yes, Programmable |
Yes, Programmable |
Yes, Programmable |
|
Dimension(mm) |
(110*110*400)*2 |
270*330*540 |
270*540*600 |
400*540*600 |
600*540*600 |
|
Warranty |
Battery Packs have 5 years warranty support for 70% Capacity. All components will be replaced or repaired free of cost in the warranty period of 3 years. From 4th year onwards, replacement parts will be charged on actual. |
||||
|
Application |
Energy Storage for Static - Indoor application , along with Flin Inverter |
||||
CUSTOMIZED BATTERY PACK OPTIONS ARE AVAILABLE AS PER CUSTOMER REQUIREMENTS.
